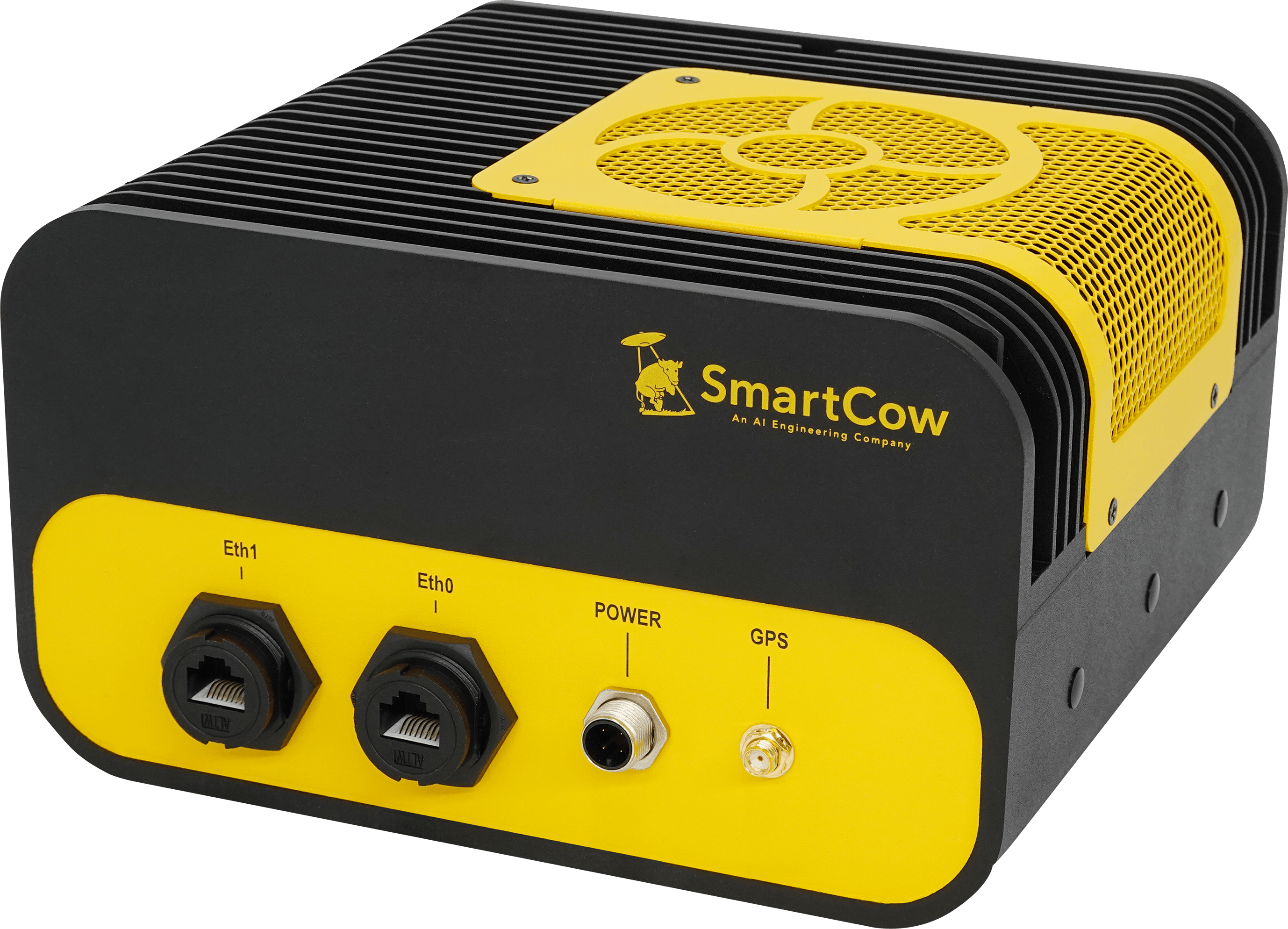

Mars is a rugged IP65 gateway meticulously designed around the NVIDIA® Jetson AGX Orin™ module for harsh environments. The device has M12 connectors for IO for extra robustness. Other critical features include the OOB(Out Of Band) feature to enable operators to maintain and monitor the device through a secure protocol. 10G, 2.5G, and an optional 5G are available for connectivity.
Mars thrives in the challenging environment of smart factories, exhibiting unparalleled resilience and performance.
Mars seamlessly supports complex AI models, enabling smooth execution of extensive video input analysis and data transmission.
Benefit from Mars' advanced out-of-band (OOB) power cycling and remote debugging, enabling devices to maintain functionality even during network connectivity loss, effectively preventing system crashes.
Supported Modules
NVIDIA® Jetson AGX Orin™
Expansion
2x M.2 M Key(2280)
1x M.2 E Key (2230)
1x M.2 B Key (3052)
Power input
24V DC input with M12 Power Connector
Operating temp
-20°C ~+60°C
Storage temp
-40°C ~+85°C
Storage humidity
95% @ 40 °C (non-condensing)
Front I/O panel
1x M12 Power Connector
1x 1 GbE port (OOB function only)
1x 2.5 GbE port
1x 10 GbE port
1x GPS
1x RS232
Dimensions
200(L) x 180(W) x 114(H)mm
Supported Modules
NVIDIA® Jetson AGX Orin™
Expansion
Mini PCIe (2280) x1
M.2 E Key (2230) x1
M.2 B Key (3052) x1
Micro SD Card)
Power input
24V DC input with M12 Power Connector
Front I/O panel
- M12 Power Connector x1
- 1 GbE port x1
- 10 GbE port x1
- 1x GPS
Dimension
200(W) x 180(L) x 114(H)mm
Environment
Operating Temp:
-20°C ~+60°C
Storage Temp:
-40°C ~+85°C
Storage Humidity:
95% @ 40 °C (non-condensing)
Mars can integrate up to 15 cameras at the same time to run with applications such as license plate recognition, vehicle and lane change detection, and vehicle counting.
Mars, which is designed for robust smart factory environments, can help to manage workloads so that even devices without a network connection can operate, avoiding system crashes.
