About Apollo

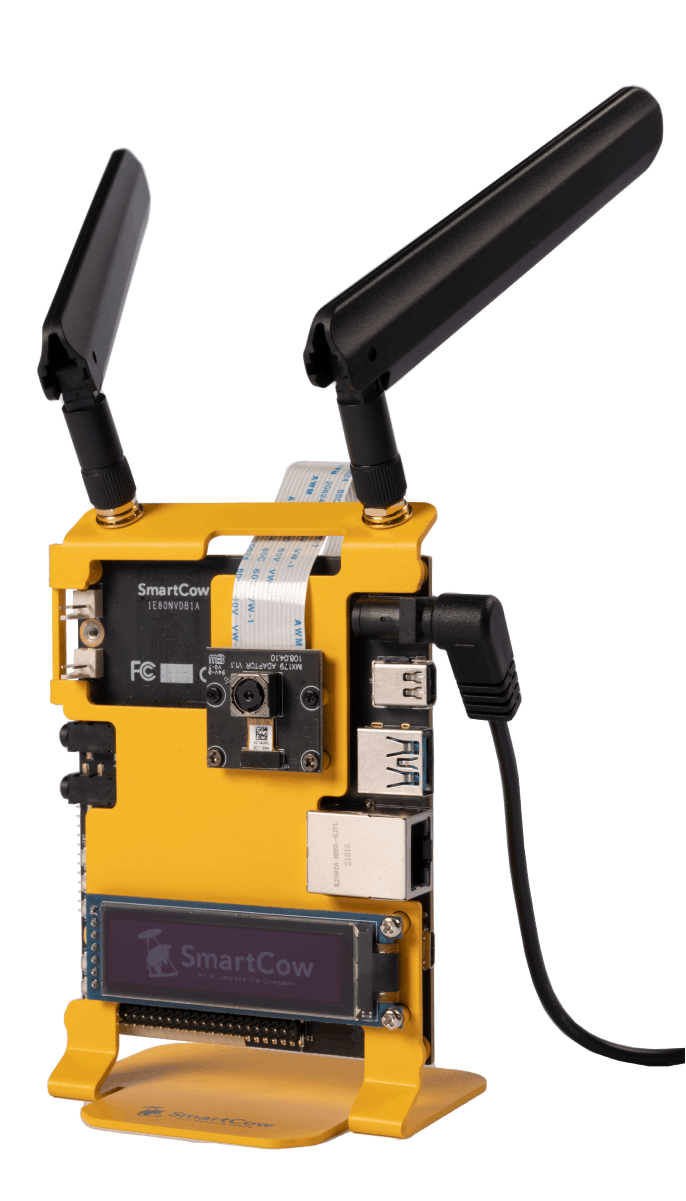

Apollo is an exceptional audio/visual AI engineering kit built around the potent NVIDIA® Jetson Xavier™ NX computing module. Specialized to empower developers in constructing conversational AI applications, Apollo boasts an array of components including four microphones, two speaker terminals, two 3.5mm phone jacks, an 8MP camera module, an OLED display, and a capacious 128GB NVMe SSD. Complemented by pre-packaged NVIDIA JetPack™, DeepStream, and RIVA on Embedded SDK toolkits, Apollo stands as a testament to ingenuity.

Cutting-Edge AI Solutions

Achieve remarkable outcomes across diverse scenarios using Vision AI and advanced Natural Language Processing (NLP). Apollo empowers engineers to seamlessly integrate audio and vision AI, crafting cutting-edge edge solutions for real-world challenges.

Dedicated Engineering Kit

Effortlessly streamline audio/video AI development with a specialized toolkit. Focus on refining edge AI audio-visual solutions without the complexity of configuring peripheral devices or intricate system integration.

Instant-Use Software Demos

Access a variety of pre-designed audio and video AI applications, powered by NVIDIA® DeepStream and RIVA. These turnkey solutions provide immediate functionality, and developers can seamlessly incorporate their distinct application features, expanding the realm of customization. Regular introduction of new examples continually enriches the choices.

Highlighted Features

Hardware

Integrated Audio System

Built-in audio codec with 4x MEMS microphones.

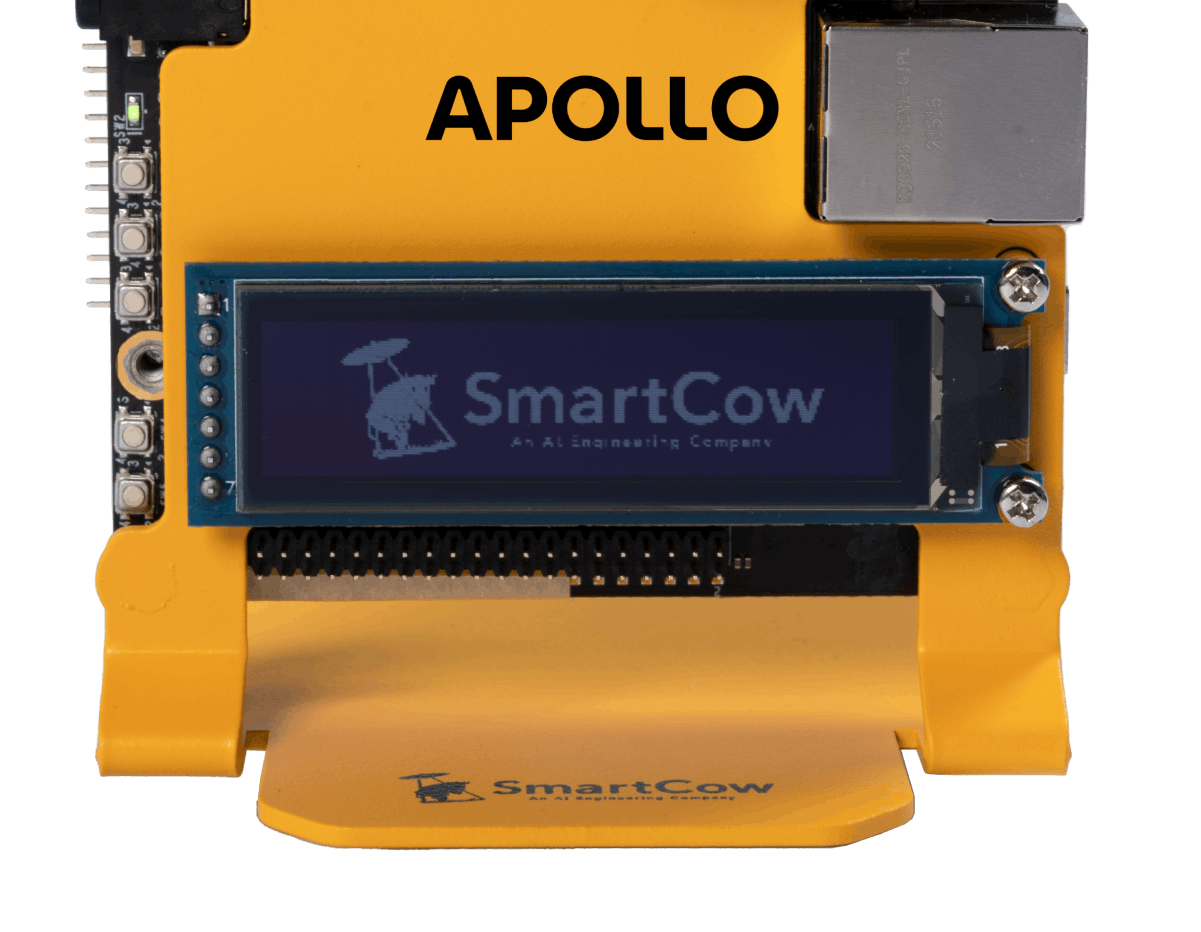

Large OLED Display

Equipped with a 2.08-inch OLED screen for status viewing.

Convenient Baseframe

Enables upright stance for easy developer interaction.

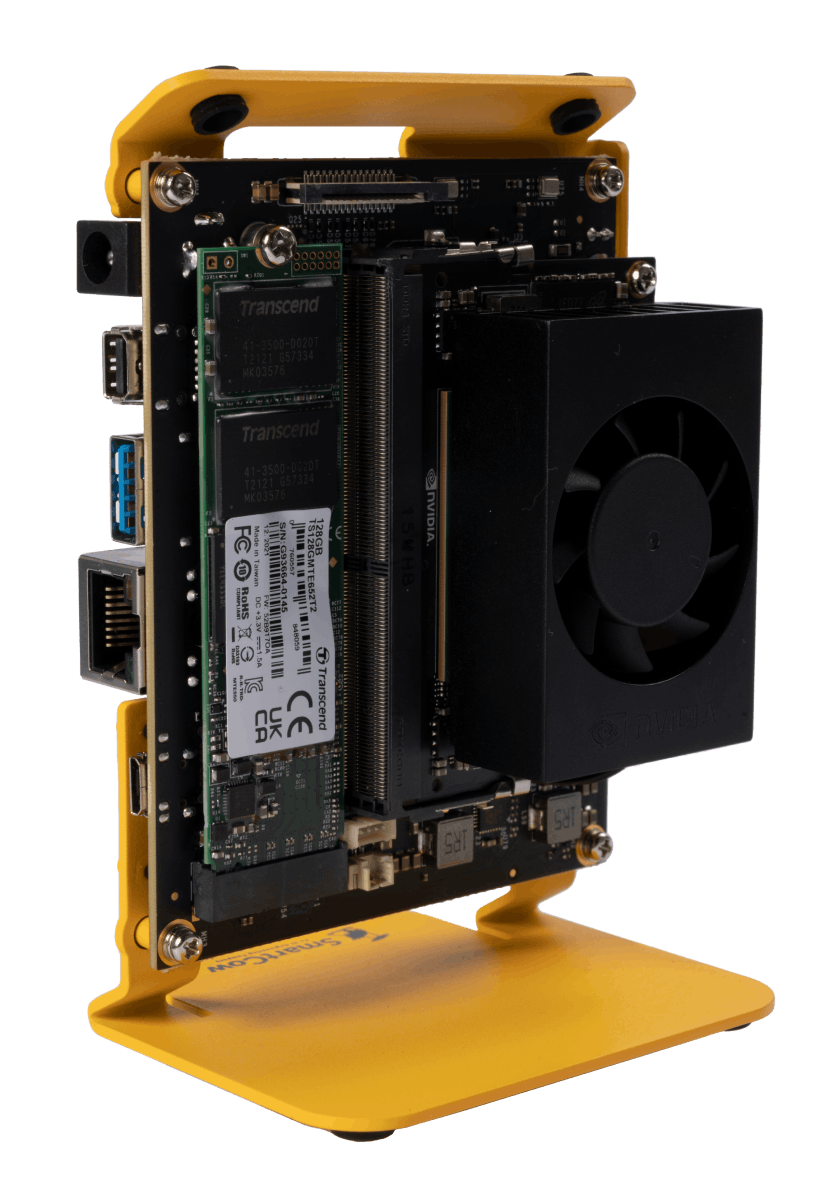

128GB NVMe SSD

Product Specifications

Get started

NVIDIA® JetsonXavier™ NX

CPU:

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 processor

GPU:

NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores

Memory:

8 GB 128-bit LPDDR4x @ 1600 MHz 51.2GB/s16 GB 128-bit LPDDR4x @ 59.7GB/s

Storage:

16 GB eMMC 5.1

Physical I/O

Display:

1x Mini DP

Ethernet:

1x RJ45 GbE (10/100/1000)

Tact Switch:

Recovery / Reset / Power / Programmable Buttons x2

USB:

1x USB3.2 Gen1 Type A
1x USB2.0 Micro B (OTG only)

Line in:

1x 3.5mm Phone Jack

Line out:

1x 3.5mm Phone Jack)

Internal Connector

Speaker out:

2x pin header (2-pin with 2.54pitch)

Mic in:

4x MEMS Microphone

Camera:

1x 15-pin FPC for MIPI CSI-II 2 Lanes

2-pin header:

1x RTC with CR2032 Battery

4-pin header:

1x Fan

7-pin header:

1x SPI for OLED

12-pin header:

1x UART (Debug only)
1x Power LED
1x Auto-power-on
1x Reset
1x Recovery
1x Power

40-pin header:

1x UART
2x I2C
1x SPI

Expansion slots:

1x M.2 2280 Key M
1x M.2 2230 Key E

Environment

Power input:

12V DC input with DC Jack

Dimension PCBA with base frame:

81(L) x 69(W) x 125(H) mm

Operating Temp:

0°C ~ 50°C

Storage Temp:

-25°C ~+80°C

Storage Humidity:

95% @ 40 °C (non-condensing

NVIDIA® Jetson Xavier™ NX

CPU:

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3 processor

GPU:

NVIDIA Volta™ architecture with 384 NVIDIA CUDA® cores and 48 Tensor cores

Memory:

8 GB 128-bit LPDDR4x @ 1600 MHz 51.2GB/s16 GB 128-bit LPDDR4x @ 59.7GB/s

Storage:

16 GB eMMC 5.1

Physical I/O

Display:

1x Mini DP

Ethernet:

1x RJ45 GbE (10/100/1000)

Tact Switch:

Recovery / Reset / Power / Programmable Buttons x2

USB:

1x USB3.2 Gen1 Type A
1x USB2.0 Micro B (OTG only)

Line in:

1x 3.5mm Phone Jack

Line out:

1x 3.5mm Phone Jack)

Internal Connector

Speaker out:

2 x pin header (2-pin with pitch 2.54mm)

Mic in:

4x MEMS Microphone

Camera:

1x 15-pin FPC for MIPI CSI-II 2 Lanes

2-pin header:

1x RTC with CR2032 Battery

4-pin header:

1x Fan

7-pin header:

1x SPI for OLED

12-pin header:

1x UART (Debug only)
1x Power LED
1x Auto-power-on
1x Reset
1x Recovery
1x Power

40-pin header:

1x UART
2x I2C
1x SPI

Expansion slots:

1x M.2 2280 Key M
1x M.2 2230 Key E

Environment

Power input:

12V DC input with DC Jack

Dimension PCBA with base frame:

81(L) x 69(W) x 125(H) mm

Operating Temp:

0°C ~ 50°C

Storage Temp:

-25°C ~+80°C

Storage Humidity:

95% @ 40 °C (non-condensing)

Highlighted Features

Engineering

Programmable Button

Leverage the adaptive potential of Vision AI, delivering exceptional results across various scenarios. Embark on the evolutionary journey of NLP to unprecedented heights. Apollo simplifies the incorporation of audio and vision AI, empowering engineers to innovate cutting-edge solutions for real-world complexities.

import Jetson.GPIO as GPIO
BUT1_PIN = 15

One-Key Recovery Button

Simplify the developer experience with Apollo's One-Key Recovery support, streamlining and accelerating the engineering process.

A/B (Seamless) System Updates.

Highlighted Features

Supporting Software

Automatic Speech Recognition (ASR)

Leverage the power of NVIDIA RIVA's model for precise transcription of spoken language into text, enhancing accessibility and interaction.

Text to Speech

Harness the NVIDIA RIVA model to seamlessly convert text inputs into natural speech audio, opening doors to dynamic communication possibilities.

Natural Language Processing (NLP)

Utilize the NLTK model for sentiment analysis, enabling assessment of text tone for positive or negative context, and paving the way for deeper text understanding.

Chatbot

Employ the Chatterbot open-source solution to create dynamic chatbot instances. NLP tasks include text tone analysis and text-to-speech audio conversion, enriching interactive experiences.

Speaker Verification

Experience the audio counterpart of facial recognition with Speaker Verification. Detect and identify unique vocal characteristics, creating secure and personalized interactions with the onboard audio kit.

Downloads

Use Cases

Smart Workplace

At work, Apollo allows employees to automate meeting minutes, facilitate access control or translate languages for multinational teams working in the same company.

smart retail use cases illustration

Smart Retail

Retail stores use Apollo as an automated customer service based on chatbots, to track customer emotions, or to analyze employee and customer time and attendance management.

Read more

smart education use cases illustrations

Smart Education

Equipped with automatic speech recognition, Apollo is a powerful educational tool to learn a foreign language. Apollo can also be used as an interactive blackboard or chatbot for students.
